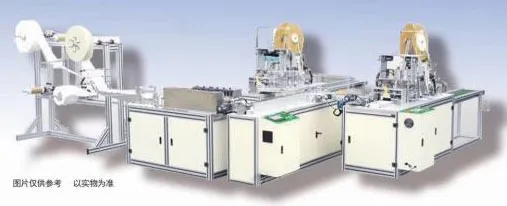

Mask Machine
Mask Machine
Information as below:
1. 3 layer medical grade mask.
2. Speed 60-80pcs/min,115,200 pcs/day.
3. Completely set of mask machine line without packing machine.
4. Lead Time: 35-40 days , Ship from China.
5. USD 110,000/set , not included shipping fee.
Please contact: Green Proud Trading Co., Ltd ( Thailand )
Mr. Gary Wu
Cell Phone:+66-097-0016601
Line ID: garywu1225
WeChat ID : garywu1968
技术特点Technical Feature

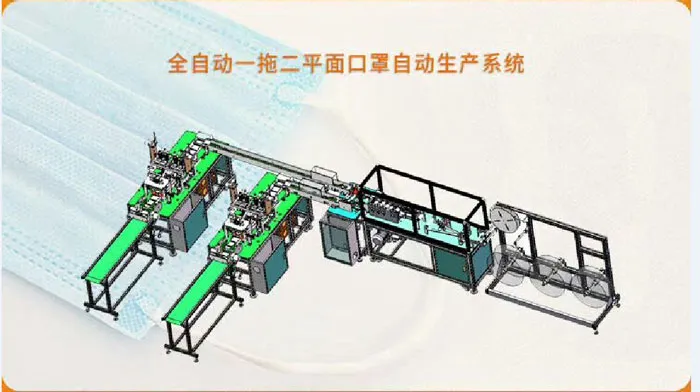

全自动拖二平面口罩自动生产系统 Automatic One-with-Two Plane Mask Production System
全自动拖二平面口罩自动生产系统 Automatic One-with-Two Plane Mask Production System
- 面层、滤层、底层三卷面料自动对齐入料，双边对称超声连续压边，经连续滚轮压边切断后，分流到两个工位进行耳带焊接以提高生产效率，焊完耳带后自动计数码堆。
Three rolls materials of surface layer, filter layer and bottom layer are automatically aligned for feeding, bilateral symmetrical ultrasonic continuous blank pressing. The materials are cut off by continuous roller blank pressing, then they are divided into two stations for ear belt welding to improve production efficiency, and the finished masks are automatically counted and palletized after ear belt welding. - 生产采用一拖二的结构一台口罩主体通过传送系统，自动输送分流到两套耳带自动焊接工位。
The production line adopts one-with-two structure. A main mask production body is connected to the two sets of automatic ear belt welding station through the conveying system. - 鼻夹可实现自动送料剪切及超声波焊接。
Realize nose clip automatic feeding shear and ultrasonic welding. - 高速生产，日产口罩16万只(24h) 。
High efficient production, daily mask production: 160,000pcs/24h. - 生产多种不同产品，更换磨具可生产不同形状不同规格的产品。
Able to produce different kinds of products, can realize production of different shapes and different specification masks by changing molds.
| 全自动拖二平面口罩自动生产系统 Automatic One-with-Two Plane Mask Production System | |
|---|---|
| 生产线型号 Production Line Model | NSD-NF29-4URWC-3- 175X95-T-VSA- FL1500-NA- 1P220 |
| 适用口罩类型 Mask Types | 普通医用口罩(YY/T0969) General Medical Mask(YY/T0969) 外科医用口罩(YY0469) Surgical Medical Mask(YY0469) |
| 成品规格 Mask Specification | 175mm x 95mm |
| 生产节拍 Cycle Time | 60-80pcs/min |
| 适用材料 Material | PP无纺布复合纤维 PP nonwoven composite fiber |
| 适用层数 Mask Layer | 3层 3 layers |
| 加工方式 Processing Method | 超声焊接Ultrasonic Welding |
| 操作屏 Control Screen | 10寸液晶触摸屏 10’ LCD touch screen |
| 气压 Air Pressure | 0.6MPa |
| 功率 Power | 10KW |
| 电源 Power Supply | 220v/50Hz |
| 占地面积 Floor Space | 7100mm x 3000mm x 780mm |
| 选配装置 Optional Device | 次品自动监测和剔除单元 Automatic monitoring and removing unit for defective products自动消毒杀菌单元 Automatic sterilization unit无尘洁净单元 Dust-free cleaning unit自动装袋单元 Automatic bagging unit |

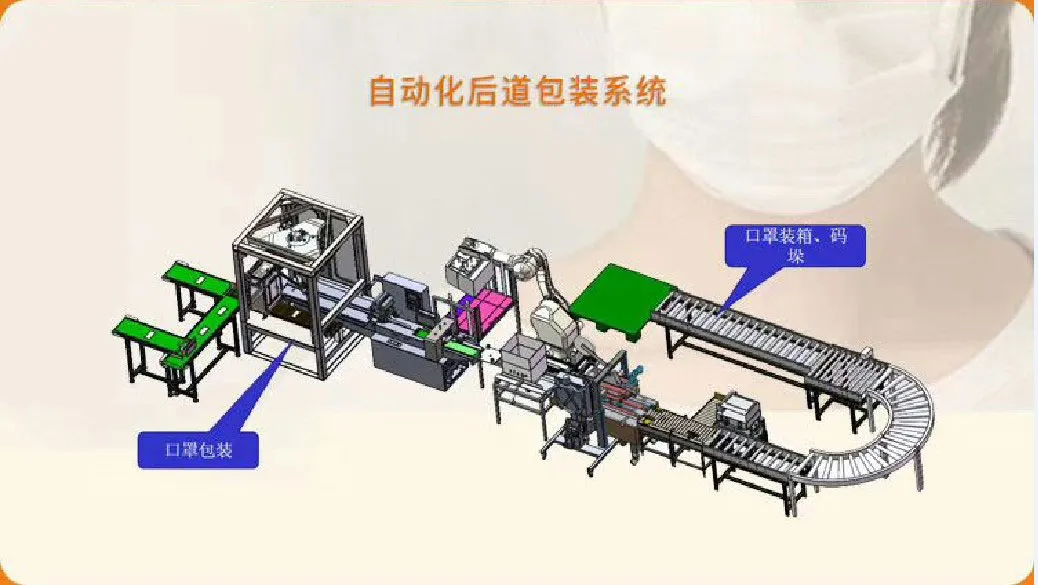

自动化后道包装系统 Automatic Back-end Packing System
- 全程自动化生产，无需人工干预。
The whole process is fully automatic without manual intervention. - 翼菲自动研发的高速并联机器人，性能稳定。
The high speed parallel robot developed by Phoenix is with stable performance. - 方案一体化程度高，产线效率稳定。
Product integration degree is high and production line efficiency is stable.
| 自动化后道包装系统Automatic Back-end Packing System | |
|---|---|
| 抓取对象 Grab Objects | 175mm x 95mm一次性口罩 175mm x 95mm Disposable Mask |
| 系统运行效率 Running Efficiency | 80pcs/min |
| 系统总功率 Total Power | 15KW |
| 系统总耗气量 Total Air Consumption | 3L/min |
| 机器人种类 Robot Type | 并联机器人;串联机器人;防护等级IP65 Parallel Robot, Series Robot, Protection Level IP65 |
| 电源功率 Power of Supply | ≥5KVA |
| 工作电压 Working Voltage | AC 380V+10% (3P+N+PE,50HZ土 1%) |
| 海拔Altitude | ≤1000m |
| 占地面积Floor Space | 10730mm x 4580mm x 780mm |
วัตถุดิบสำหรับผลิตหน้ากากอนามัย
